With over 100 years of experience, Grip-Tite is America’s trusted utility product manufacturer. We pride ourselves on delivering high-quality, affordable products that empower experts nationwide. Our commitment to innovation, durability, and customer satisfaction has made Grip-Tite synonymous with reliability.
Explore our range of utility products today and see why professionals choose Grip-Tite for dependable solutions.
Product

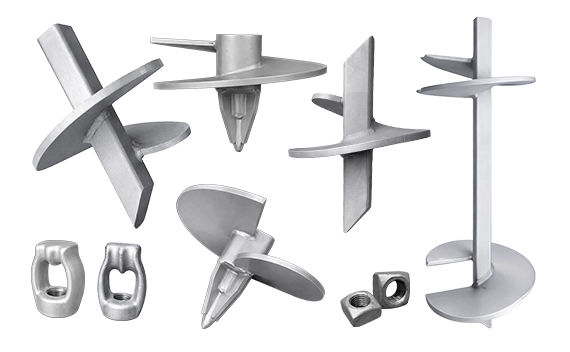

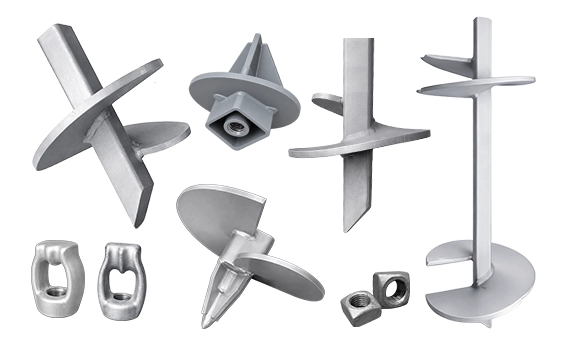

Grip-Tite anchoring products are established solutions for your utility infrastructure and repair needs The Power Grip line of hub anchors vary in size and strength. All Power-Grip anchors are used in combination with Hub Anchor Rods and Eye-Nuts and come painted for rust resistance.
Check out the product and parts information pages to find the best anchoring solutions for you and your business.
Product

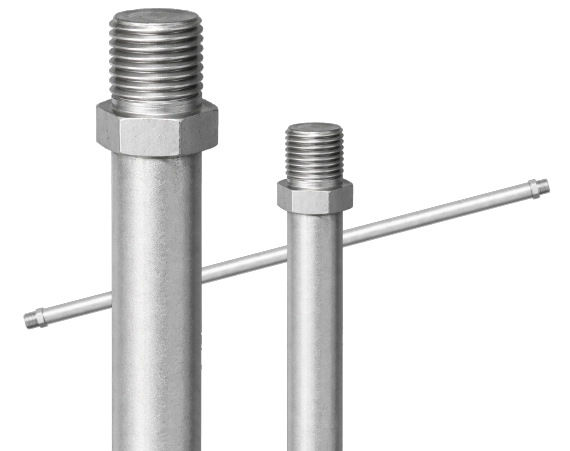

Power-Grip Hub Anchor Rods are steel rods that utilize two forged and threaded ends to connect Power-Grip Hub Anchors (1-3/8″, 1-1/2″, HD, and SHD) to the surface. Available in 2 lengths (3-1/2′ and 7′) and 3 different nominal rod sizes (5/8″, 3⁄4″, and 1″). Power-Grip Hub Anchor rods are used in combination with Power-Grip Hub Anchors, Power-Grip Heavy Duty Hub Anchors, Power-Grip Super Heavy Duty Hub Anchors, and Eye-Nuts and are galvanized to ASTM A123 standards. Note the thread size of the Power-Grip Hub Anchor Rod must match the thread size in the mating Power-Grip Hub Anchor.
Product
Power-Grip Square Shaft Anchors utilize a square shaft with welded on flights to give a higher holding capacity in looser soil. Available in 4 lengths (3′, 3-1/2′, 5-1/2′, and 7′) with various flight combinations. Made from 1-1/2″ steel square bar and 3/8″ flights formed to a 3″ pitch for consistent penetration. The Power-Grip Square Shaft Anchors are used in combination with the Power-Grip Square Shaft Anchor Extensions and are galvanized to ASTM A123 standards.
Product

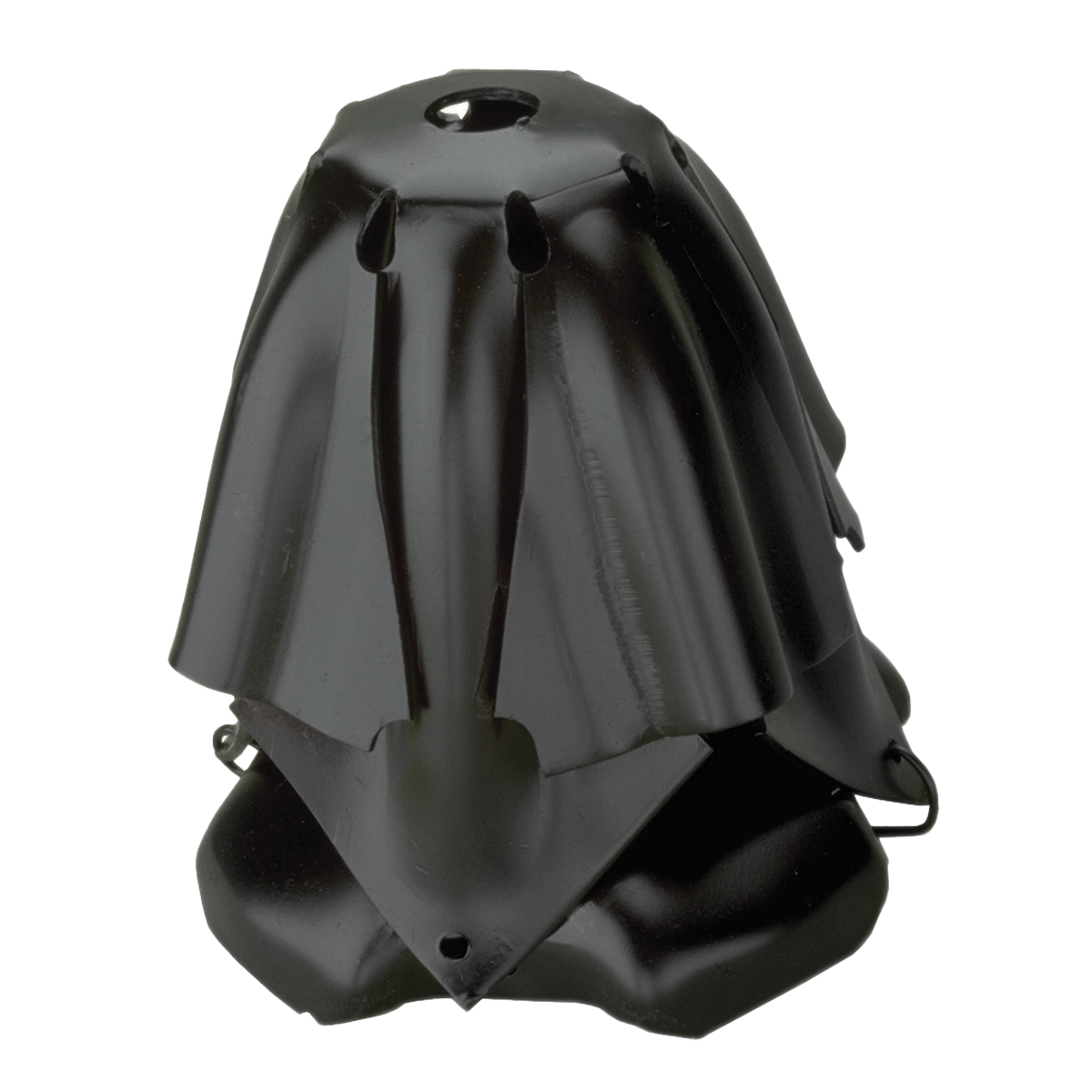

Grip-Tite Expanding Anchors are used in pre-excavated holes and expand to the size of the hole, giving high holding capacity in a small unit. The eight blade, one-piece top plate, deeply embossed for additional strength, expands upon impact into undisturbed earth to form a pyramid-shaped square. The 8-way anchor retains its shape under extremely heavy loads due to the support of the eight blades by the base plate. The Grip-Tite Expanding Anchors are used in combination with the Power-Grip Forged Anchor rods and come coated in a high-grade asphalt or galvanized to ASTM A123 standards.
Product
Grip-Tite Cross Plate Anchors are formed from structural steel and are ribbed for extra strength and reinforcement. Plate edges are flanged to resist creeping. Plates are welded at right angles for maximum holding ability and a nut retainer is provided to aid in installation.
Product

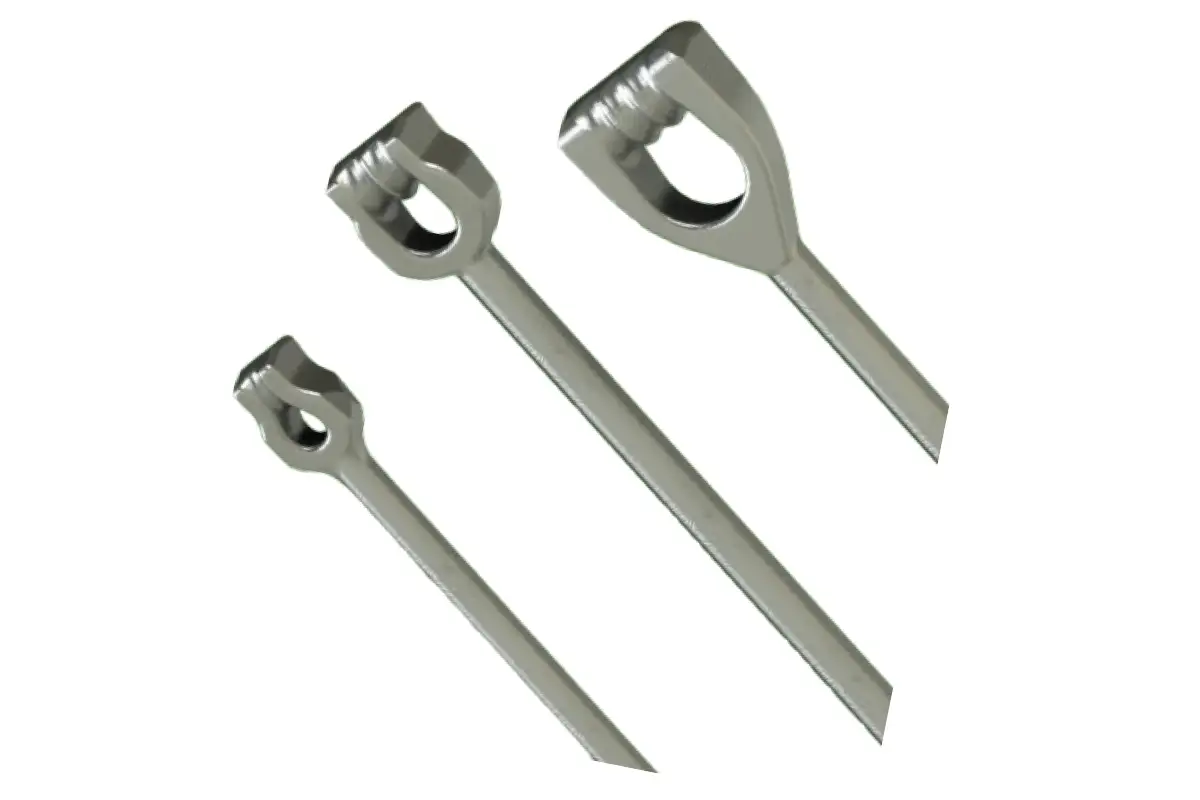

Forged Anchor Rods come in multiple lengths (60″, 72″, 84″, 96″, 108″, and 120″) and guy eye sizes (Thimble, Twin, and Triple). The rods have one forged end, with the opposite threaded end used to engage Grip-Tite Expanding Anchors and Grip Tite Cross Plate Anchors. The Grip-Tite Forged Anchor Rods eyes are formed to prevent any damage to the guy strand. All rods are galvanized to ASTM A123 standards and are supplied with a heavy square nut and a minimum of 3-1/2′ thread length.
Product
Grip-Tite Pole Key Anchors utilize multiple formed, welded plates to help stabilize misaligned poles. Grip-Tite Pole Key Anchors are formed from structural steel and are deeply ribbed for extra strength and reinforcement. The anchors expand upon impact into undisturbed soil.
Product
Download the Grip-Tite product guide to explore our innovative solutions designed for efficiency and performance. This resource provides detailed information on our full range of products, helping you make informed decisions for your projects. Access the guide easily and elevate your work with Grip-Tite solutions!
