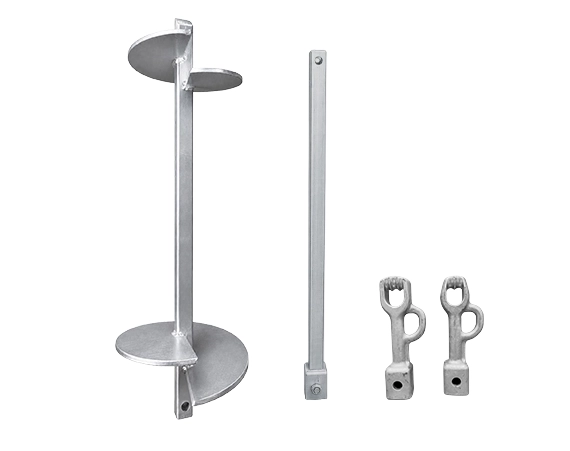

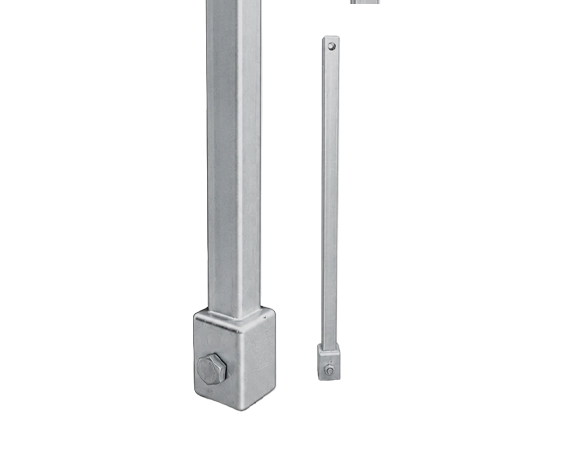

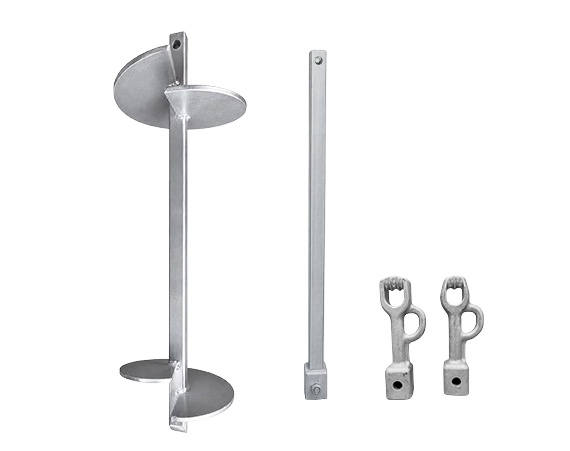

Power-Grip Square Shaft Anchors utilize a square shaft with welded on flights to give a higher holding capacity in looser soil. Available in 4 lengths (3′, 3-1/2′, 5-1/2′, and 7′) with various flight combinations. Made from 1-1/2″ steel square bar and 3/8″ flights formed to a 3″ pitch for consistent penetration. The Power-Grip Square Shaft Anchors are used in combination with the Power-Grip Square Shaft Anchor Extensions and are galvanized to ASTM A123 standards.

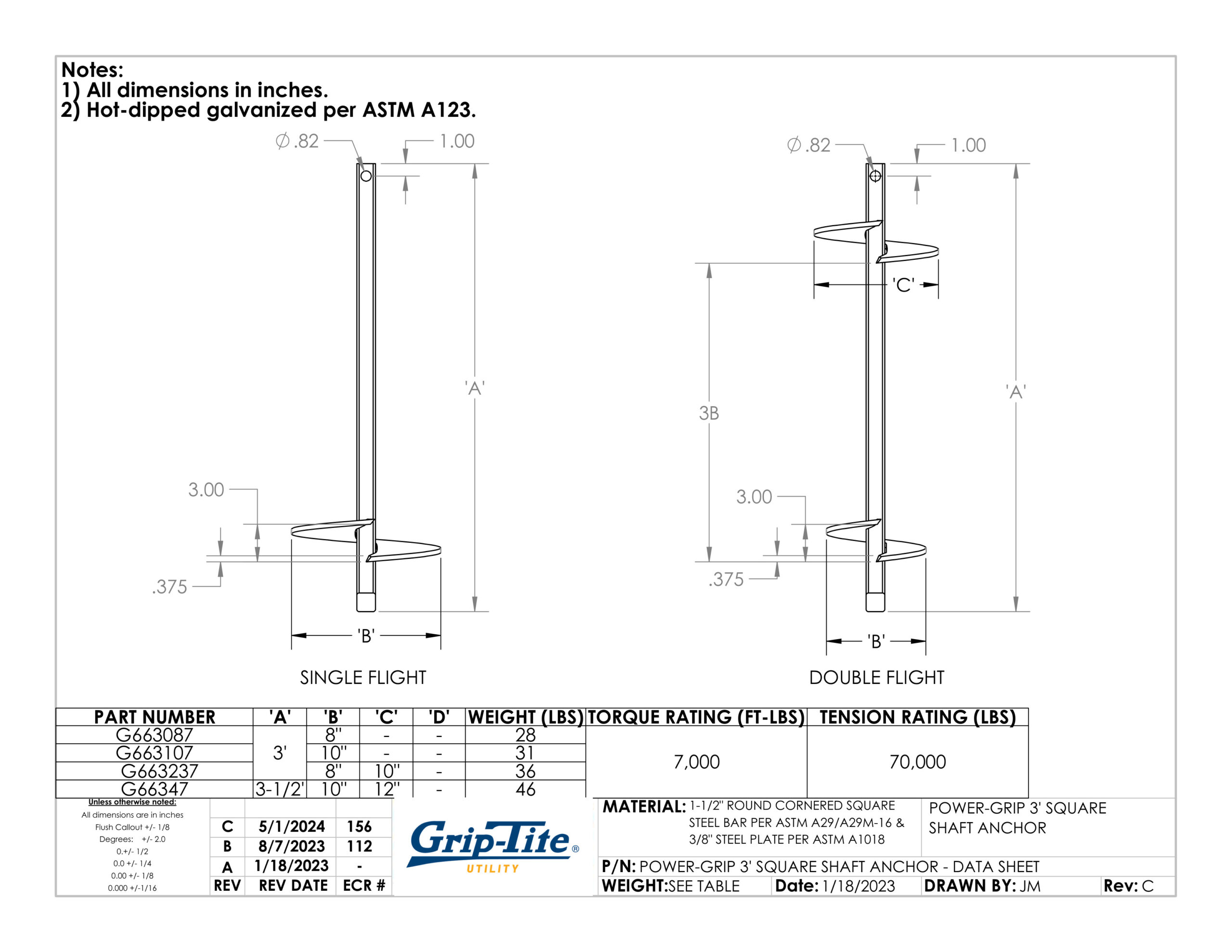

| Catalog Number | A (ft.) | B (in.) | C (in.) | D (in.) | Torque Rating (ft-lb.) | Tension Rating (lbs) | Weight Each (lbs) |
|---|---|---|---|---|---|---|---|
| G663087 | 3 | 8 | 7,000 | 70,000 | 28 | ||
| G663107 | 3 | 10 | 7,000 | 70,000 | 31 | ||
| G66327 | 3 | 8 | 10 | – | 7,000 | 70,000 | 36 |
| G66347 | 3-1/2 | 10 | 12 | – | 7,000 | 70,000 | 46 |
| G665087 | 5 | 8 | 7,000 | 70,000 | 41 | ||
| G665107 | 5 | 10 | 7,000 | 70,000 | 43 | ||
| G665127 | 5 | 12 | 7,000 | 70,000 | 46 | ||
| G665147 | 5 | 14 | 7,000 | 70,000 | 49 | ||
| G66508107 | 5 | 8 | 10 | 7,000 | 70,000 | 46 | |
| G66510127 | 5 | 10 | 12 | 7,000 | 70,000 | 52 | |
| G66512147 | 5 | 12 | 14 | 7,000 | 70,000 | 57 | |
| G66367 | 5-1/2 | 8 | 10 | 12 | 7,000 | 70,000 | 61 |
| G667087 | 7 | 8 | 7,000 | 70,000 | 57 | ||
| G667107 | 7 | 10 | 7,000 | 70,000 | 60 | ||
| G667127 | 7 | 12 | 7,000 | 70,000 | 64 | ||
| G667147 | 7 | 14 | 7,000 | 70,000 | 68 | ||
| G66708107 | 7 | 8 | 10 | 7,000 | 70,000 | 65 | |
| G66710127 | 7 | 10 | 12 | 7,000 | 70,000 | 72 | |
| G66712147 | 7 | 12 | 14 | 7,000 | 70,000 | 80 | |
| G6670810127 | 7 | 8 | 10 | 12 | 7,000 | 70,000 | 77 |
| G66377 | 7 | 10 | 12 | 14 | 7,000 | 70,000 | 89 |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| G663087 | – | – | – | 1-1/2″ 3′ Square Shaft Anchor W/8″ Flights, 7,000ft-Ib Torque |
| G663107 | – | – | – | 1-1/2″ 3′ Square Shaft Anchor W/10″ Flights, 7,000ft-Ib Torque |
| G66327 | – | D663237 | TAF-150-36 08-10 | 1-1/2″ 3′ Square Shaft Anchor W/8″ & 10″ Flights, 7,000ft-Ib Torque |
| G66347 | C1100871 | – | TAF-150-42 10-12 | 1-1/2″ 3-1/2′ Square Shaft Anchor W/10″, & 12″ Flights, 7,000ft-Ib Torque |
| G665087 | – | – | – | 1-1/2″ 5′ Square Shaft Anchor W/8″ Flights, 7,000ft-Ib Torque |
| G665107 | – | – | – | 1-1/2″ 5′ Square Shaft Anchor W/10″ Flights, 7,000ft-Ib Torque |
| G665127 | – | – | – | 1-1/2″ 5′ Square Shaft Anchor W/12″ Flight, 7,000ft-Ib Torque |
| G665147 | – | – | – | 1-1/2″ 5′ Square Shaft Anchor W/14″ Flight, 7,000ft-Ib Torque |
| G66508107 | – | D66327 | – | 1-1/2″ 5′ Square Shaft Anchor W/8″ & 10″ Flights, 7,000ft-Ib Torque |
| G66510127 | – | D66347 | – | 1-1/2″ 5′ Square Shaft Anchor W/10″ & 12″ Flights, 7,000ft-Ib Torque |
| G66512147 | – | – | – | 1-1/2″ 5′ Square Shaft Anchor W/12″ & 14″ Flights, 7,000ft-Ib Torque |
| G66367 | – | – | TAF-150-66 08-10-12 | 1-1/2″ 5-1/2′ Square Shaft Anchor W/8″, 10″, & 12″ Flights, 7,000ft-Ib Torque |
| G667087 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/8″ Flight, 7,000ft-Ib Torque |
| G667107 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/10″ Flight, 7,000ft-Ib Torque |
| G667127 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/12″ Flight, 7,000ft-Ib Torque |
| G667147 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/14″ Flight, 7,000ft-Ib Torque |
| G66708107 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/8″ & 10″ Flights, 7,000ft-Ib Torque |
| G66710127 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/10″ & 12″ Flights, 7,000ft-Ib Torque |
| G66712147 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/12″ & 14″ Flights, 7,000ft-Ib Torque |
| G6670810127 | – | D66367 | – | 1-1/2″ 7′ Square Shaft Anchor W/8″, 10″, & 12″ Flights, 7,000ft-Ib Torque |
| G66377 | C1100838 | D66377 | TAF-150-84 10-12-14 | 1-1/2″ 7′ Square Shaft Anchor W/10″, 12″, & 14″ Flights, 7,000ft-Ib Torque |
