Power-Grip Hub Anchor Rods are steel rods that utilize two forged and threaded ends to connect Power-Grip Hub Anchors (1-3/8″, 1-1/2″, HD, and SHD) to the surface. Available in 2 lengths (3-1/2′ and 7′) and 3 different nominal rod sizes (5/8″, 3⁄4″, and 1″). Power-Grip Hub Anchor rods are used in combination with Power-Grip Hub Anchors, Power-Grip Heavy Duty Hub Anchors, Power-Grip Super Heavy Duty Hub Anchors, and Eye-Nuts and are galvanized to ASTM A123 standards. Note the thread size of the Power-Grip Hub Anchor Rod must match the thread size in the mating Power-Grip Hub Anchor.

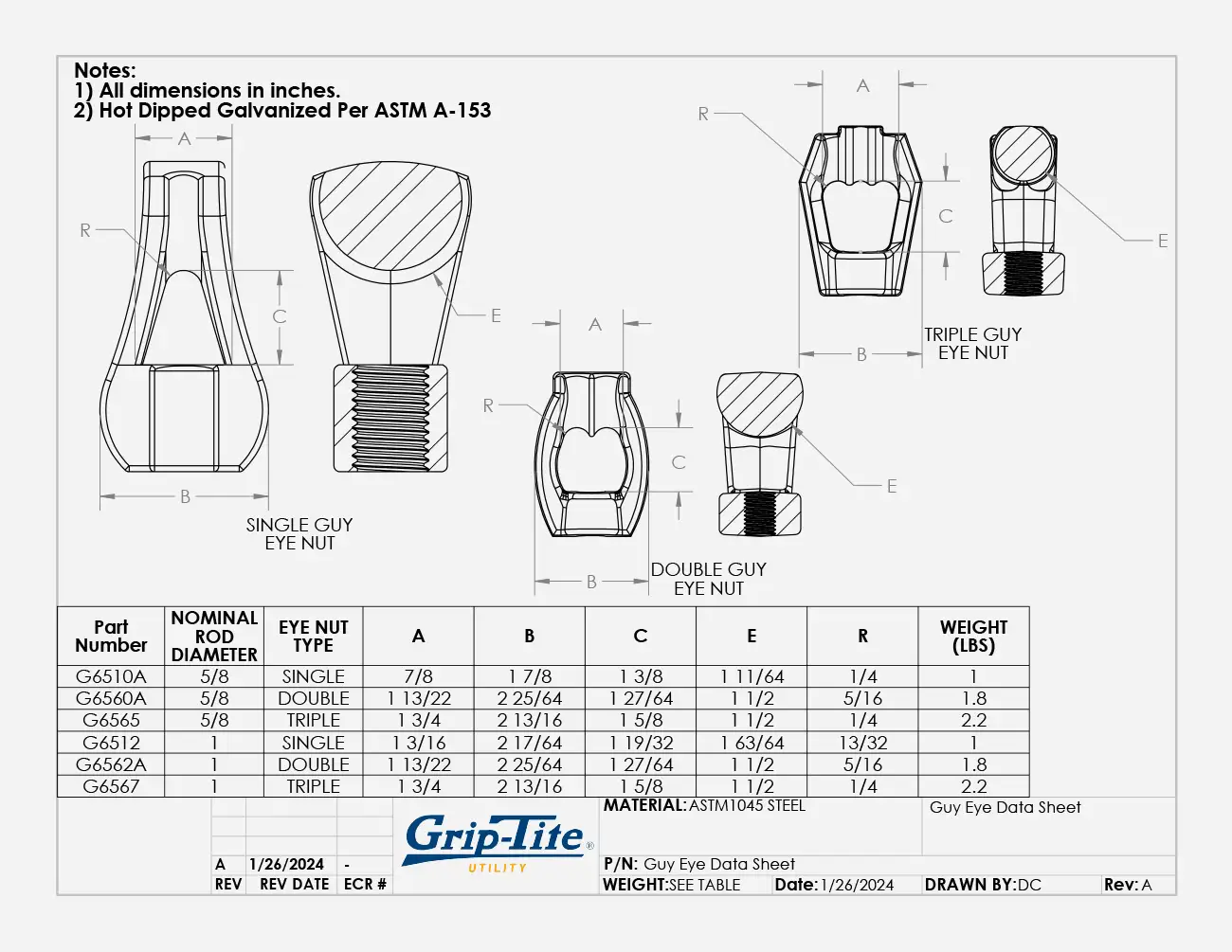

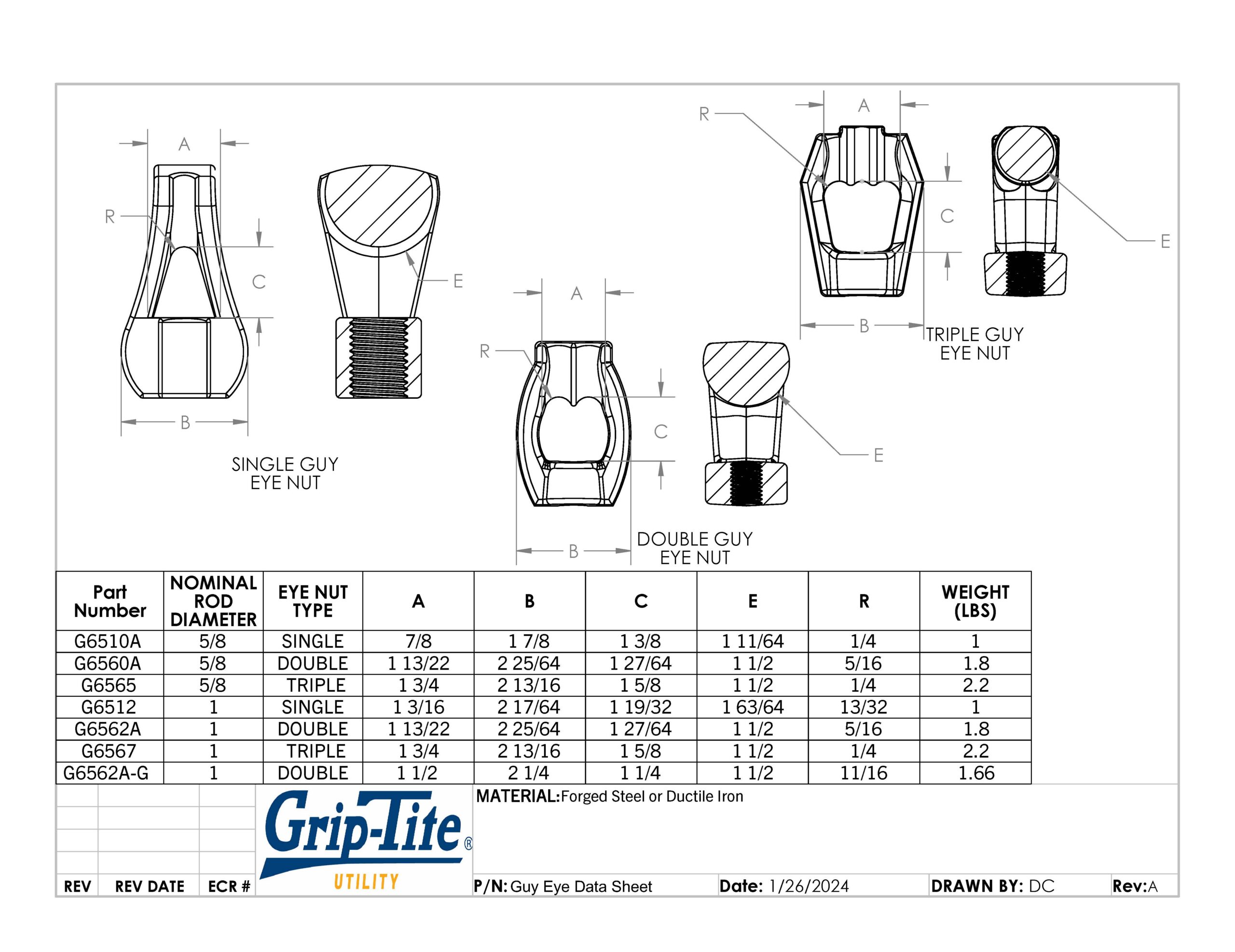

Catalog Number | A (ft.) | B (in.) | C (in.) | E (in.) | R (in.) | Weight Each (lb.) |
---|---|---|---|---|---|---|
G6510A | 7/8 | 1-7/8 | 1-3/8 | 1-11/64 | 1/4 | 1 |
G6560A | 1-13/32 | 2-25/64 | 1-27/64 | 1-1/2 | 5/16 | 1.8 |
G6565 | 1-3/4 | 2-13/16 | 1-5/8 | 1-1/2 | 1/4 | 2.2 |
G6512 | 1-3/16 | 2-17/64 | 1-19/32 | 1-63/64 | 13/32 | 1 |
G6562A | 1-13/32 | 2-25/64 | 1-27/64 | 1-1/2 | 5/16 | 1.8 |
G6567 | 1-3/4 | 2-13/16 | 1-5/8 | 1-1/2 | 1/4 | 2.2 |

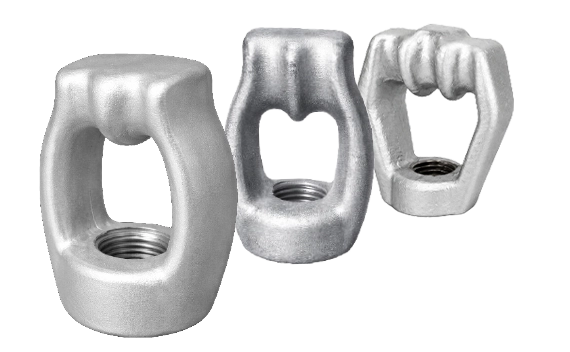

Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
---|---|---|---|---|
G6510A | 12587 | D6510A | TAN-625-001 | 5/8” Rod Diameter Thimble Eyenut |
G6560A | 12589 | D6560A | TAN-625-002 | 5/8” Rod Diameter Twin Eyenut |
G6565 | 12593 | D6565 | TAN-625-003 | 5/8” Rod Diameter Triple Eyenut |
G6512 | 6512 | D6512 | TAN-100-001 | 3/4” and 1” Rod Diameter Thimble Eyenut |
G6562A | 6562 | D6562A | TAN-100-002 | 3/4” and 1” Rod Diameter Twin Eyenut |
G6567 | 12585 | D6567 | TAN-100-003 | 3/4” and 1” Rod Diameter Triple Eyenut |
