Power-Grip Square Shaft Anchors utilize a square shaft with welded on flights to give a higher holding capacity in looser soil. Available in 4 lengths (3′, 3-1/2′, 5-1/2′, and 7′) with various flight combinations. Made from 1-1/2″ steel square bar and 3/8″ flights formed to a 3″ pitch for consistent penetration. The Power-Grip Square Shaft Anchors are used in combination with the Power-Grip Square Shaft Anchor Extensions and are galvanized to ASTM A123 standards.

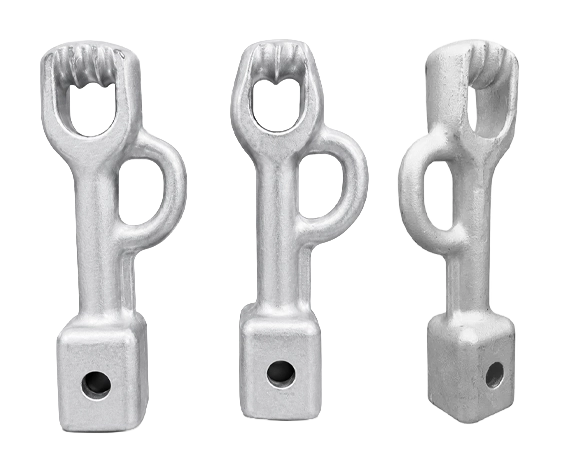

Catalog Number | A (ft.) | B (in.) | C (in.) | D (in.) | Guy Termination | Torque Rating (ft-lb) | Weight Each (lb.) |
---|---|---|---|---|---|---|---|
G6632TU7 | 3 | 8 | Triple Eye | 7,000 | 36 | ||
G6636DU7 | 5-1/2 | 8 | 10 | 12 | Twin Eye | 7,000 | 69 |
G6636TU7 | 5-1/2 | 8 | 10 | 12 | Triple Eye | 7,000 | 69 |
G6637TU7 | 7 | 10 | 12 | 14 | Triple Eye | 7,000 | 97 |
Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
---|---|---|---|---|
G6632TU7 | – | – | – | 1-1/2″ 3′ Square Shaft Anchor W/8″ Flights, 7,000 ft-lb Torque With Triple Eye Guy Termination |
G6636DU7 | – | – | – | 1-1/2″ 5-1/2′ Square Shaft Anchor W/8″, 10″, & 12″ Flights, 7,000 ft-lb Torque With Twin Eye Guy Termination |
G6636TU7 | – | – | – | 1-1/2″ 5-1/2′ Square Shaft Anchor W/8″, 10″, & 12″ Flights, 7,000 ft-lb Torque With Triple Eye Guy Termination |
G6637TU7 | – | – | – | 1-1/2″ 7′ Square Shaft Anchor W/10″, 12″ & 14″ Flights, 7,000 ft-lb Torque With Triple Eye Guy Termination |
