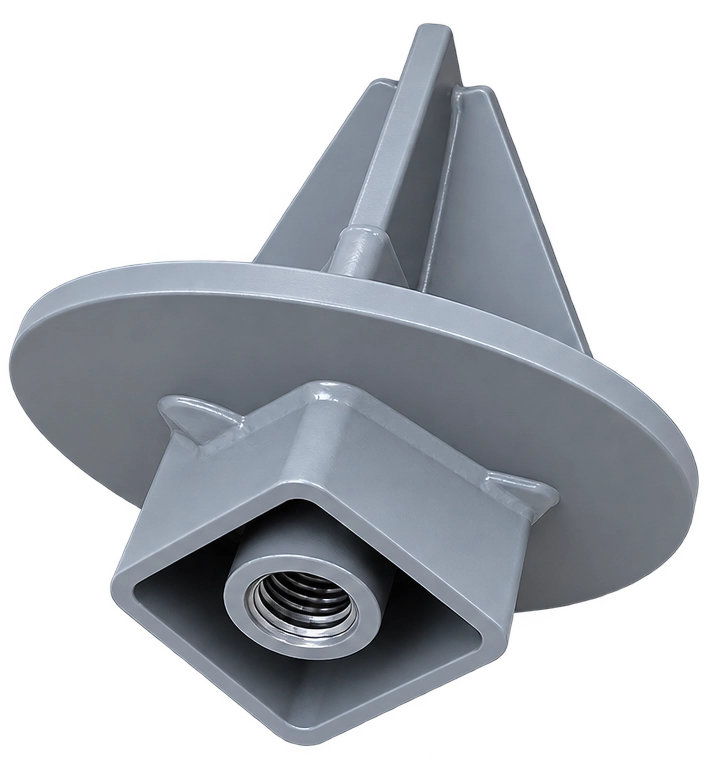

Power-Grip Heavy Duty Hub Anchors are higher torque rated hub anchors used primarily in higher capacity applications. Available in Heavy Duty are, 2-1/2″ and 2-1/4″, with 4 flight sizes (8″, 10″, 12″ and 14″).
Power-Grip Heavy Duty Hub Anchors are made from structural steel tubing and sheet steel with the 3/8″ steel flights formed to a 3″ pitch for consistent penetration.
Used in combination with Power-Grip Hub Anchor Rods and Eye-Nuts. Power-Grip Heavy Duty Anchors come painted for rust resistance. All flights have a beveled leading edge as a standard offering.
| Catalog Number | A (in.) | B (in.) | C (in.) | D (in.) | Torque Rating (ft-lb.) |
|---|---|---|---|---|---|
| GHD225-82 | 7.88 | 8 | 2.25 | 5/8 | 10,000 |
| GHD225-102 | 7.88 | 10 | 2.25 | 5/8 | 10,000 |
| GHD225-112 | 7.88 | 12 | 2.25 | 5/8 | 10,000 |
| GHD225-84 | 7.88 | 8 | 2.25 | 3/4 or 1 | 10,000 |
| GHD225-104 | 7.88 | 10 | 2.25 | 3/4 or 1 | 10,000 |
| GHD225-114 | 7.88 | 12 | 2.25 | 3/4 or 1 | 10,000 |
| GHD225-134 | 7.88 | 14 | 2.25 | 3/4 or 1 | 10,000 |
| GHD250-84 | 8.50 | 8 | 2.50 | 3/4 or 1 | 15,000 |
| GHD250-104 | 8.50 | 10 | 2.50 | 3/4 or 1 | 15,000 |
| GHD250-114 | 8.50 | 12 | 2.50 | 3/4 or 1 | 15,000 |
| GHD250-134 | 8.50 | 14 | 2.50 | 3/4 or 1 | 15,000 |
| Grip-Tite Part Number | Hubbell Part Number | MacLean ECP Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| GHD225-82 | C1025208 | TD225-82 | TAX-225-625(8) | 2-1/4” Power-Grip Heavy Duty Hub Anchor, 5/8” Rod Diameter, with 8” Flight, 10,000ft-lb Torque |
| GHD225-102 | C1025209 | TD225-104 | TAX-225-625(10) | 2-1/4” Power-Grip Heavy Duty Hub Anchor, 5/8” Rod Diameter, with 10” Flight, 10,000ft-lb Torque |
| GHD225-112 | C1025210 | TD225112 | TAX-225-625(12) | 2-1/4” Power Grip Heavy Duty Hub Anchor, 5/8” Rod Diameter, with 12” Flight, 10,000ft-lb Torque |
| GHD225-84 | C1025200 | TD225-84 | TAX-225-100(8) | 2-1/4” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 8” Flight, 10,000ft-lb Torque |
| GHD225-104 | C1025201 | TD225-104 | TAX-225-100(10) | 2-1/4” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 10” Flight, 10,000ft-lb Torque |
| GHD225-114 | C1025202 | TD225-114 | TAX-225-100(12) | 2-1/4” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 12” Flight, 10,000ft-lb Torque |
| GHD225-134 | C1025203 | TD225-134 | TAX-225-100(14) | 2-1/4” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 14” Flight, 10,000ft-lb Torque |
| GHD250-84 | C1025004 | TD250-84 | TAX-250-100(8) | 2-1/2” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 8” Flight, 15,000ft-lb Torque |
| GHD250-104 | C1025005 | TD250-104 | TAX-250-100(10) | 2-1/2” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 10” Flight, 15,000ft-lb Torque |
| GHD250-114 | C1025006 | TD250-114 | TAX-250-100(12) | 2-1/2” Power-Grip Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, 12” Flight, 15,000ft-lb Torque |
| GHD250-134 | C1025007 | TD250-134 | TAX-250-100(14) | 2-1/2” Power Grip Heavy Duty Hub Anchor, 3/4” or 1”Rod Diameter, with 14” Flight, 15,000ft-lb Torque |
