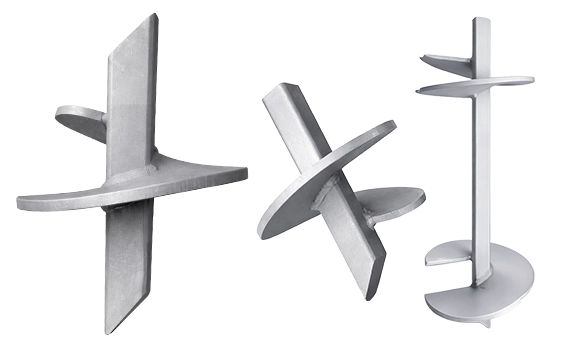

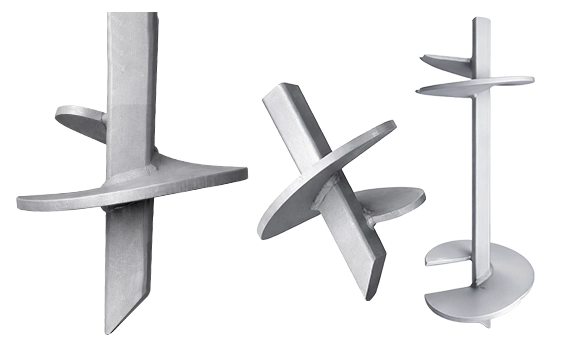

Power-Grip Hub Anchors are square shaft hubs with tapped ends that are used primarily in low to mid-level capacity applications.
Available in 2 shaft sizes (1-3/8″ and 1-1/2″), 2 nominal tapped sizes (5/8″ and 1″), as well as four different flight sizes (8″, 10″, 12″, and 14″).
Made from 1-1/2″ steel square bar and 3/8″ flights formed to a 3″ pitch for consistent penetration. The Power-Grip Hub Anchors are used in combination with the Power-Grip Hub Anchor Rods and Eye-Nuts and come painted for rust resistance. All flights have a beveled leading edge as a standard offering.
| Catalog Number | A (in.) | B (in.) | C (in.) | Torque Rating (ft-lb.) |
|---|---|---|---|---|
| G182-7 | 1-1/2 | 8 | 5/8 | 7,000 |
| G1102-7 | 1-1/2 | 10 | 5/8 | 7,000 |
| G1112-7 | 1-1/2 | 12 | 5/8 | 7,000 |
| G184-7 | 1-1/2 | 8 | 3/4 or 1 | 7,000 |
| G1104-7 | 1-1/2 | 10 | 3/4 or 1 | 7,000 |
| G1114-7 | 1-1/2 | 12 | 3/4 or 1 | 7,000 |
| G1134-7 | 1-1/2 | 14 | 3/4 or 1 | 7,000 |
| G284-7 | 1-1/2 | 8 | 3/4 or 1 | 7,000 |
| G2104-7 | 1-1/2 | 10 | 3/4 or 1 | 7,000 |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| G182-7 |
– |
– | TAP-625-10 08 |
1-1/2” Power-Grip Hub Anchor, 5/8” Rod Diameter, 9-1/2” Long W/8” Flight, 7,000ft-lb Torque |
| G1102-7 |
– |
– | TAPL-625-10 10 | 1-1/2” Power-Grip Hub Anchor, 5/8” Rod Diameter, 9-1/2” Long W/10” Flight, 7,000ft-lb Torque |
| G1112-7 |
– |
– | TAPL-625-10 12 | 1-1/2” Power-Grip Hub Anchor, 5/8” Rod Diameter, 9-1/2” Long W/12” Flight, 7,000ft-lb Torque |
| G184-7 |
Beveled: C199020114 Square: E1021223 |
D184-7 |
TAPL-100-10 08 | 1-1/2” Power-Grip Hub Anchor, 3/4” or 1” Rod Diameter, 9-1/2” Long W/8” Flight, 7,000ft-lb Torque |
| G1104-7 |
Beveled: – Square: E1020250 |
D1104-7 |
TAPL-100-10 10 | 1-1/2″ Power-Grip Hub Anchor, 1″ Thread, 9-1/2″ Long with 10″ Flight, 7000ft-lb Torque |
| G1114-7 |
Beveled: – Square: T1022143 |
D1114-7 |
TAPL-100-10 12 | 1-1/2″ Power-Grip Hub Anchor, 1″ Thread, 9-1/2″ Long with 12″ Flight, 7000ft-lb Torque |
| G1134-7 |
Beveled: – Square: T1022319 |
– | TAPL-100-10 14 | 1-1/2″ Power-Grip Hub Anchor, 1″ Thread, 9-1/2″ Long with 14″ Flight, 7000ft-lb Torque |
| G284-7 |
Beveled: C199020116 Square: E1021219 |
D284-7 |
TAPL-100-26 08-08 | 1-1/2″ Power-Grip Hub Anchor, 1″ Thread, 28″ Long with 2 8″ Flights, 7000ft-lb Torque |
| G2104-7 |
Beveled: C199020117 Square: E1021220 |
D2104-7 |
TAPL-100-36 10-10 | 1-1/2″ Power-Grip Hub Anchor, 1″ Thread, 28″ Long with 2 10″ Flights, 7000ft-lb Torque |
