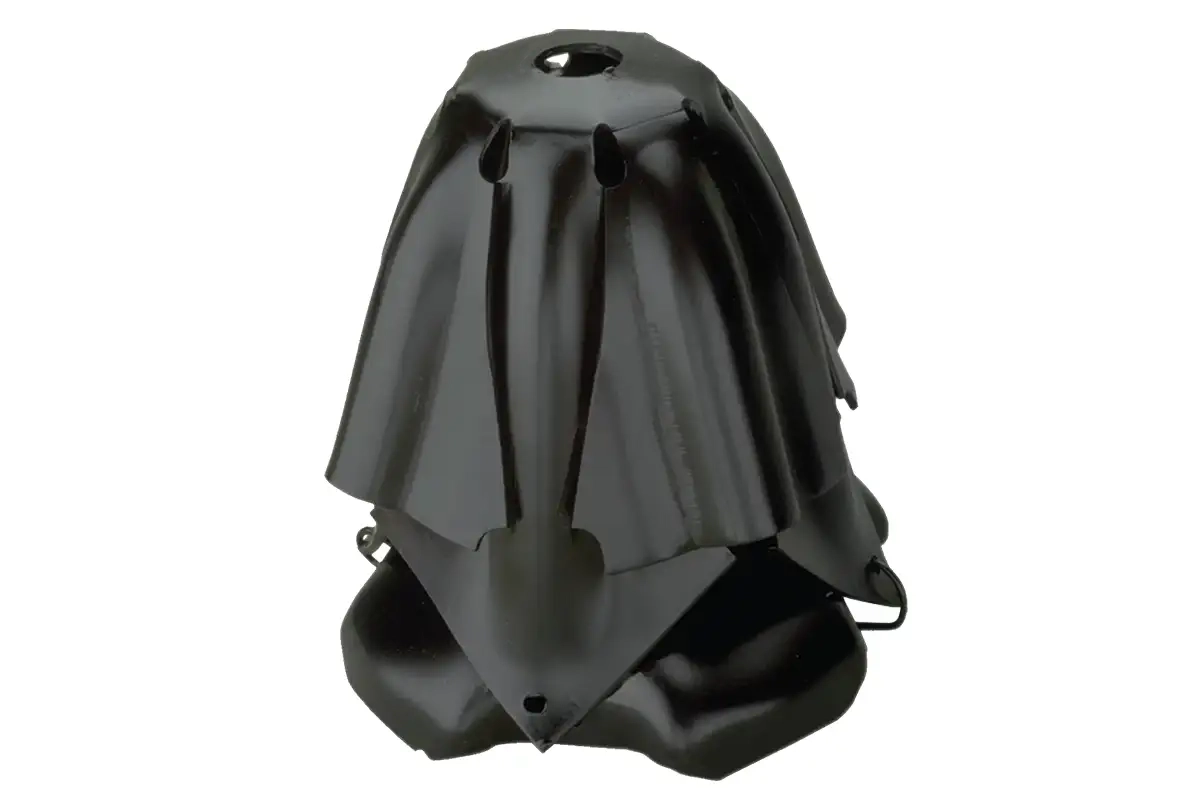

Grip-Tite Expanding Anchors are used in pre-excavated holes and expand to the size of the hole, giving high holding capacity in a small unit.

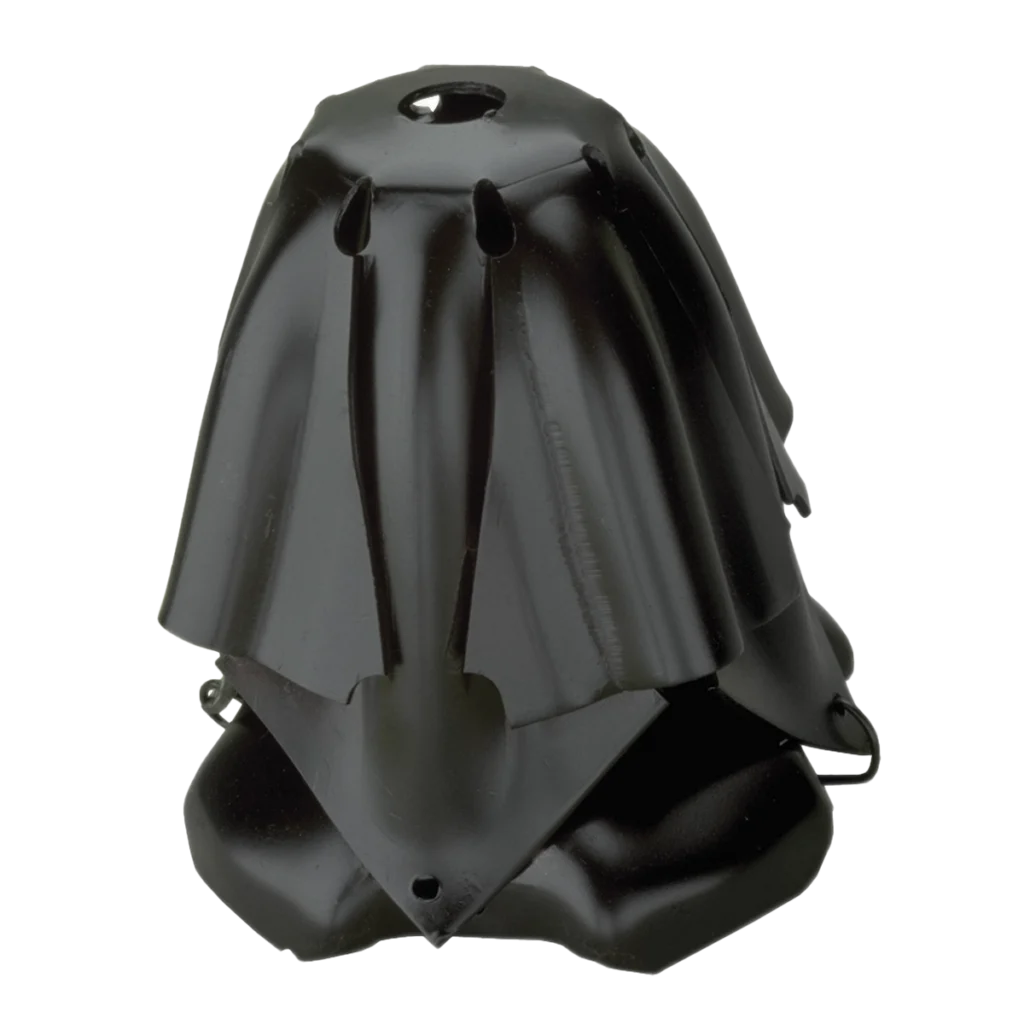

The eight blade, one-piece top plate, deeply embossed for additional strength, expands upon impact into undisturbed earth to form a pyramid-shaped square.
The 8-way anchor retains its shape under extremely heavy loads due to the support of the eight blades by the base plate.
The Grip-Tite Expanding Anchors are used in combination with the Power-Grip Forged Anchor rods and come coated in a high-grade asphalt or galvanized to ASTM A123 standards.

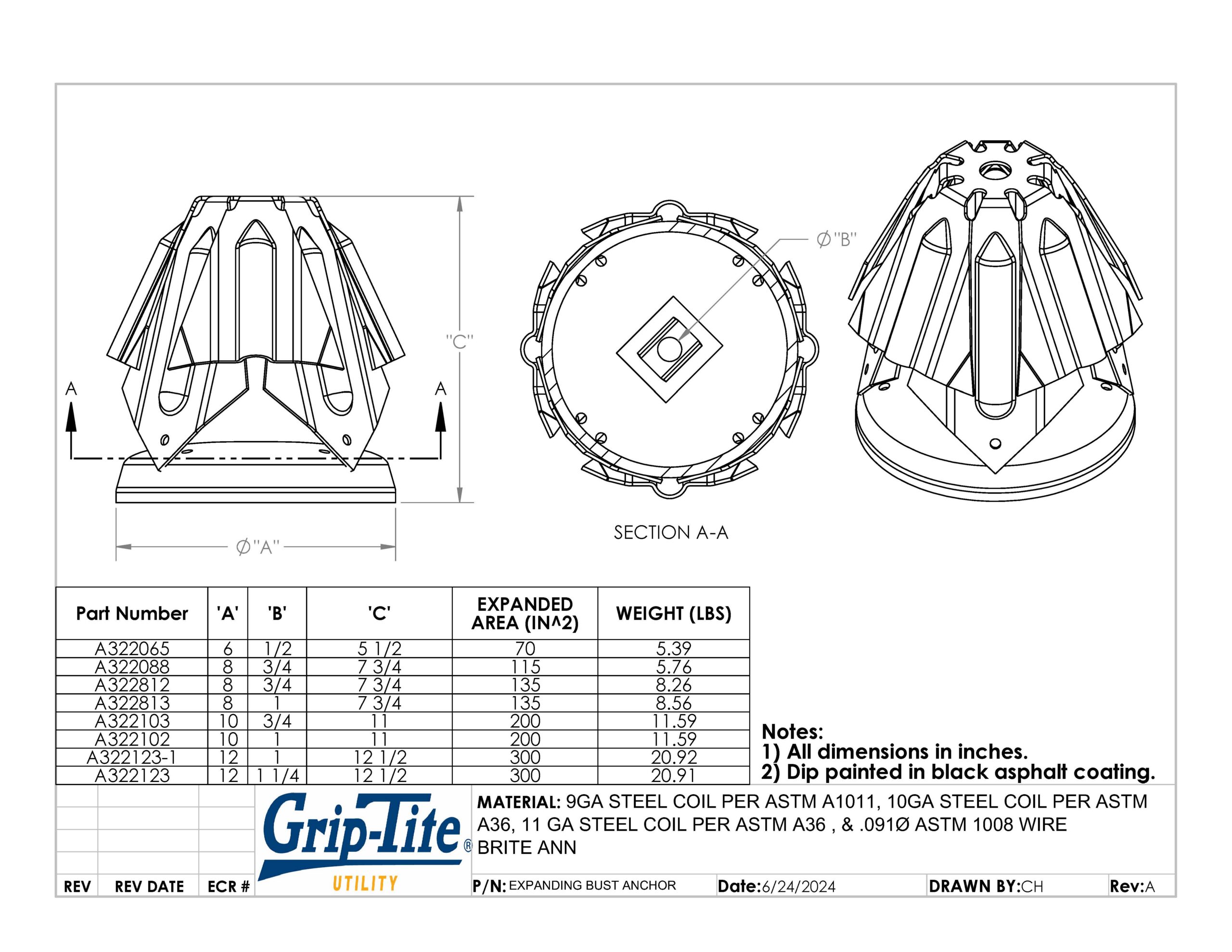

| Catalog Number | Installation Hole Diameter (in.) | Area of Anchor (sq. in.) | Rod Diameter (in.) | Weight (lbs.) |
|---|---|---|---|---|
| A322065 | 6 | 70 | 1/2 – 5/8 | 5 |
| A322088 | 8 | 115 | 5/8 – 3/4 | 6 |
| A322812 | 8 | 135 | 5/8 – 3/4 | 8 |
| A322813 | 8 | 135 | 1 | 8 |
| A322103 | 10 | 200 | 5/8 – 3/4 | 12 |
| A322102 | 10 | 200 | 1 | 12 |
| A322123-1 | 12 | 300 | 1 | 21 |
| A322123 | 12 | 300 | 1 – 1/4 | 21 |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| A322065 | 6870 | J0870 | – | 6″ Expanding Anchor with 1/2″ Nut Retainer |
| A322088 | 88135 | J8115 | UAB-080-750 | 8″ Expanding Anchor with 3/4″ Nut Retainer |
| A322812 | 88135 | J8135 | UAB-080-750 | 8″ Expanding Anchor with 3/4″ Nut Retainer |
| A322813 | – | J8135-1 | UAB-080-100 | 8″ Expanding Anchor with 1″ Nut Retainer |
| A322103 | 108234 | J8200-3/4 | UAB-010-750 | 10″ Expanding Anchor with 3/4″ Nut Retainer |
| A322102 | 1082 | J8200-1 | UAB-010-100 | 10″ Expanding Anchor with 1″ Nut Retainer |
| A322123-1 | 12831 | J0283-1 | UAB-012-100 | 12″ Expanding Anchor with 1″ Nut Retainer |
| A322123 | 1283 | J0283 | UAB-012-125 | 12″ Expanding Anchor with 1-1/4″ Nut Retainer |
