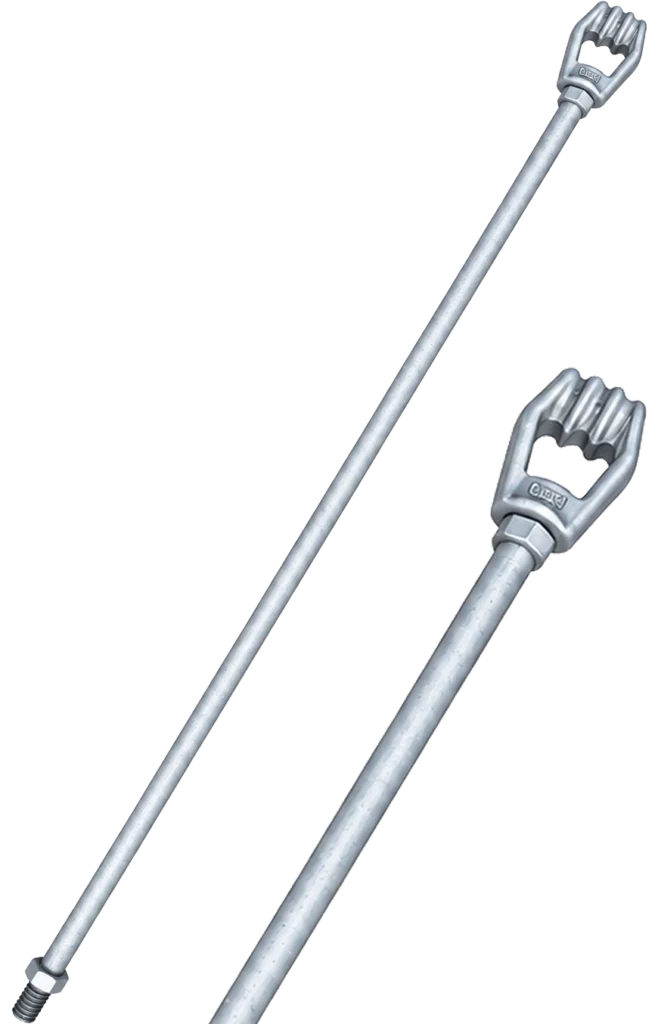

Power-Grip Hub Anchor Rods are steel rods that utilize two forged and threaded ends to connect Power-Grip Hub Anchors (1-3/8″, 1-1/2″, HD, and SHD) to the surface. Available in 2 lengths (3-1/2′ and 7′) and 3 different nominal rod sizes (5/8″, 3/4″, and 1″). Power-Grip Hub Anchor rods are used in combination with Power-Grip Hub Anchors, Power-Grip Heavy Duty Hub Anchors, Power-Grip Super Heavy Duty Hub Anchors, and Eye-Nuts and are galvanized to ASTM A123 standards. Anchor rods with eyenuts are pre-assembled at the factory for convenience.
| Catalog Number | A (ft.) | B (diameter in.) | C (hex in.) | D (thread size) | Weight Each (lb.) | Torque Rating (ft-lb.) |
|---|---|---|---|---|---|---|
| G6231/2S | 3-1/2 | 5/8 | 1 | 43/64-11 UNS | 4.5 | 16,000 |
| G6231/2D | 3-1/2 | 5/8 | 1 | 43/64-11 UNS | 5.5 | 16,000 |
| G62S | 7 | 5/8 | 1 | 43/64-11 UNS | 7.5 | 16,000 |
| G62D | 7 | 5/8 | 1 | 43/64-11 UNS | 8.5 | 16,000 |
| G62T | 7 | 5/8 | 1 | 43/64-11 UNS | 8.5 | 16,000 |
| Catalog Number | A (ft.) | B (diameter in.) | C (hex in.) | D (thread size) | Weight Each (lb.) | Torque Rating (ft-lb.) |
|---|---|---|---|---|---|---|
| G7531/2S | 3-1/2 | 3/4 | 1.23 | 1 – 8 UNC | 7 | 23,000 |
| G7531/2D | 3-1/2 | 3/4 | 1.23 | 1 – 8 UNC | 7 | 23,000 |
| G75S | 7 | 3/4 | 1.23 | 1 – 8 UNC | 11.5 | 23,000 |
| G75D | 7 | 3/4 | 1.23 | 1 – 8 UNC | 11.5 | 23,000 |
| G75T | 7 | 3/4 | 1.23 | 1 – 8 UNC | 12 | 23,000 |
| Catalog Number | A (ft.) | B (diameter in.) | C (hex in.) | D (thread size) | Weight Each (lb.) | Torque Rating (ft-lb.) |
|---|---|---|---|---|---|---|
| G10031/2S | 3-1/2 | 1 | 1.23 | 1 – 8 UNC | 11.5 | 36,000 |
| G10031/2D | 3-1/2 | 1 | 1.23 | 1 – 8 UNC | 11.5 | 36,000 |
| G100S | 7 | 1 | 1.23 | 1 – 8 UNC | 20 | 36,000 |
| G100D | 7 | 1 | 1.23 | 1 – 8 UNC | 20 | 36,000 |
| G100T | 7 | 1 | 1.23 | 1 – 8 UNC | 20.5 | 36,000 |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| G6231/2S | E1020031 | D6231/2S | TARN-625-421 | 5/8” Rod Diameter x 3-1/2’ Power-Grip Hub Anchor Rod with Single Eyenut, Galvanized |
| G6231/2D | – | – | TARN-625-422 | 5/8” Rod Diameter x 3-1/2’ Power-Grip Hub Anchor Rod with Double Eyenut, Galvanized |
| G62S | E1020035 | D62S | TARN-625-841 | 5/8” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Single Eyenut, Galvanized |
| G62D | E1020043 | D62D | TARN-625-842 | 5/8” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Double Eyenut, Galvanized |
| G62T | E1020032 | D62T | TARN-625-843 | 5/8” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Triple Eyenut, Galvanized |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| G7531/2S | E1020032 | D7531/2S | TARN-750-421 | 3/4” Rod Diameter x 3-1/2’ Power-Grip Hub Anchor Rod with Single Eyenut, Galvanized |
| G7531/2D | E1020040 | D7531/2D | TARN-750-422 | 3/4” Rod Diameter x 3-1/2’ Power-Grip Hub Anchor Rod with Double Eyenut, Galvanized |
| G75S | E1020036 | D75S | TARN-750-841 | 3/4” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Single Eyenut, Galvanized |
| G75D | E1020044 | D75D | TARN-750-842 | 3/4” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Double Eyenut, Galvanized |
| G75T | E1020052 | D75T | TARN-750-843 | 3/4” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Triple Eyenut, Galvanized |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| G10031/2S | – | – | TARN-100-421 | 1” Rod Diameter x 3-1/2’ Power-Grip Hub Anchor Rod with Single Eyenut, Galvanized |
| G10031/2D | E1020041 | – | TARN-100-422 | 1” Rod Diameter x 3-1/2’ Power-Grip Hub Anchor Rod with Double Eyenut, Galvanized |
| G100S | E1020037 | D100S | TARN-100-841 | 1” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Single Eyenut, Galvanized |
| G100D | E1020045 | D100D | TARN-100-842 | 1” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Double Eyenut, Galvanized |
| G100T | E1020053 | D100T | TARN-100-843 | 1” Rod Diameter x 7’ Power-Grip Hub Anchor Rod with Triple Eyenut, Galvanized |
