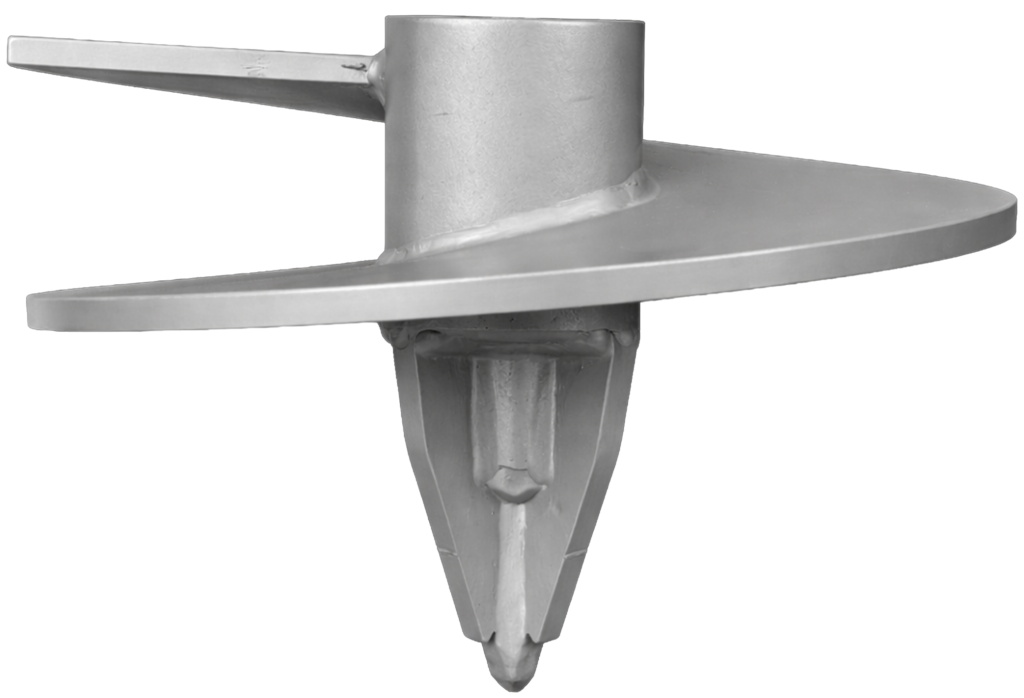

Power-Grip Super Heavy Duty Hub Anchors are higher torque rated hub anchors used primarily in higher capacity applications. Available in Super Heavy Duty are, 2-1/2″ and 2-1/4″, with 4 flight sizes (8″, 10″, 12″ and 14″).
Power-Grip Super Heavy Duty Hub Anchors are made from structural steel tubing and sheet steel with the 1/2″ steel flights formed to a 3″ pitch for consistent penetration. Used in combination with Power-Grip Hub Anchor Rods and Eye-Nuts. Power Grip Heavy Duty Anchors come painted for rust resistance. All flights have a beveled leading edge as a standard offering.
| Catalog Number | A (in.) | B (in.) | C (in.) | D (in.) | Torque Rating (ft-lb) |
|---|---|---|---|---|---|
| GSHD225-82 | 7.88 | 8 | 2.25 | 5/8 | 10,000 |
| GSHD225-102 | 7.88 | 10 | 2.25 | 5/8 | 10,000 |
| GSHD225-112 | 7.88 | 12 | 2.25 | 5/8 | 10,000 |
| GSHD225-84 | 7.88 | 8 | 2.25 | 3/4 or 1 | 10,000 |
| GSHD225-104 | 7.88 | 10 | 2.25 | 3/4 or 1 | 10,000 |
| GSHD225-114 | 7.88 | 12 | 2.25 | 3/4 or 1 | 10,000 |
| GSHD225-134 | 7.88 | 14 | 2.25 | 3/4 or 1 | 10,000 |
| GSHD250-84 | 8.50 | 8 | 2.50 | 3/4 or 1 | 15,000 |
| GSHD250-104 | 8.50 | 10 | 2.50 | 3/4 or 1 | 15,000 |
| GSHD250-114 | 8.50 | 12 | 2.50 | 3/4 or 1 | 15,000 |
| GSHD250-134 | 8.50 | 14 | 2.50 | 3/4 or 1 | 15,000 |
| Grip-Tite Part Number | Hubbell Part Number | MacLean Part Number | ECP Part Number | Description |
|---|---|---|---|---|
| GSHD225-82 | – | TDH225-82 | – | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor, 5/8” Rod Diameter, with 8” Flight, 10,000ft-lb Torque |
| GSHD225-102 | – | TDH225-102 | – | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor 5/8” Rod Diameter with 10” Flight, 10,000ft-lb Torque |
| GSHD225-112 | – | TDH225-112 | – | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor, 5/8” Rod Diameter, with 14” Flight, 10,000ft-lb Torque |
| GSHD225-84 | – | TDH225-84 | HTAX-225-100 08 | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 8” Flight, 10,000ft-lb Torque |
| GSHD225-104 | – | TDH225-104 | HTAX-225-100 10 | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 10” Flight, 10,000ft-lb Torque |
| GSHD225-114 | – | TDH225-114 | HTAX-225-100 12 | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 12” Flight, 10,000ft-lb Torque |
| GSHD225-134 | – | TDH225-134 | HTAX-225-100 14 | 2-1/4” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 14” Flight, 10,000ft-lb Torque |
| GSHD250-84 | – | TDH250-84 | HTAX-250-100 08 | 2-1/2” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 8” Flight, 15,000ft-lb Torque |
| GSHD250-104 | – | TDH250-104 | HTAX-250-100 10 | 2-1/2” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 10” Flight, 15,000ft-lb Torque |
| GSHD250-114 | – | TDH250-114 | HTAX-250-100 12 | 2-1/2” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 12” Flight, 15,000ft-lb Torque |
| GSHD250-134 | – | TDH250-134 | HTAX-250-100 14 | 2-1/2” Power-Grip Super Heavy Duty Hub Anchor, 3/4” or 1” Rod Diameter, with 14” Flight, 15,000ft-lb Torque |
